Machine and process

We detail here the machine and the processes we regularly support in our machine. All other process need to be discussed with the staff member before being performed in the Centre.

Silicon ICP-DRIE SPTS

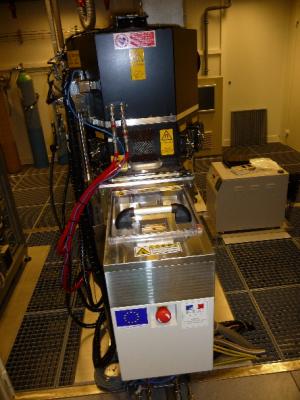

View of the machine

The machine is working

Brand/Model: SPTS / Rapier

Description: Silicon can be etched in an anisotropic (or isotropic) and dry way with the technology called “deep RIE”. This method combines deposition and etching plasma assisted processes. While the silicon is etched, the process enables to deposit a fluorinated component on the pattern walls in order to passivate them. Etching-deposition cycles with given gases and time enable to etch deeply and anisotropically the silicon independently of its orientation.


Person in charge: Chollet Franck

Authorized operators: noUndergraduate yesResearch Student yesResearch Staff

Documentation:
missing Standard Operation Procedure is not yet available, sorry!
missing Risk Assesment is not yet available, sorry!

Process:

Note that when you are logged as a user, the process list includes the process cost.
The Booking cost is the cost when you operate the equipment yourself (and book it) while the Request cost is when a Centre Staff is performing the process for you.
